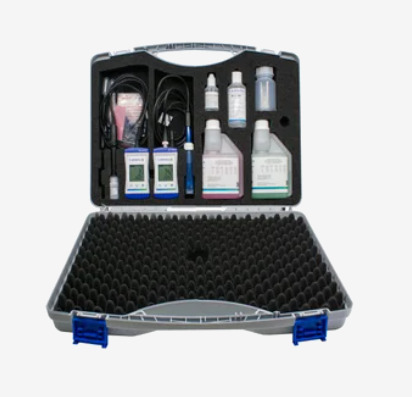

ECO-WA-SET-511-531 – Waterproof dissolved oxygen and pH meter set with accessories
This practical pH and dissolved oxygen set in a case is based on the ECO Line devices ECO 511 and ECO 531.
It is designed for practical field measurements and contains all necessary maintenance accessories.
The devices also impress with their ergonomics, dust and water protection according to IP 65/67, and a backlit display.
The kit is an intelligent, practical, and cost-effective oxygen measuring device for use in fishing, fish farming, aquariums, aquaculture, koi breeding, and well water measurement.
- Protection class:
- IP65 / IP67
- Accuracy:
- Oxygen:
±1.5 % of measurem. Value ± 0,2 mg/l or
±1.5 % of meas. val. ± 2 % O2 saturationTemperature:
±0.3 °C - Power supply:
- 2 x AA Alkaline batteries (included)
- Housing material:
- Impact resistant ABS, polyester front panel
- Measuring range:
- 0.0 … 14.00 pH
- Connections:
- Galvanic sensor (active membrane type),
KOH electrolyte
2 m or 4 m cable, permanently connected to the device, with integrated temperature sensor - Operating conditions:
- -20 … +50 °C, 0 … 95 % r.H.
- Storage temperature:
- -10 … +60 °C (without batteries)
- Display:
- 3-line with battery status indicator, Backlight, protected by shatterproof screen, overhead display at keypress
- Dimensions:
- 450 x 360 x 106 mm
- Accuracy (nominal temperature):
- For oxygen: ± 1.5 % of value ±0.2 mg / l or ±1.5 % of value, ±2 % O2 saturation
- Automatic Power-Off:
- Yes, configurable by the user
- Battery life:
- > 3000 h typ. continuous operation (without backlight)
- Housing:
- Impact resistant ABS, Polyester (front panel)
- Operating conditions instrument:
- 0 … 40 °C; 0 … 95 % r.h. (short-term condensation possible)
- Operating conditions sensor:
- max. 3 bar, 0 … 40 °C (recommended 5 … 30 °C)
- Activation time T95:
- 10 s at nominal temperature
- Sensor operating pressure:
- max. 3 bar (ca. 30 m water depth)
- Sensor range of application:
- 0…60 °C
- min. flow:
- 30 cm/s (in standing water by stirring or moving the sensor up and down)
- Compensation:
- Temperature : automatically with integrated temperature measurement
Air pressure : Compensation possible with manual input (normally not necessary)
Salinity : with manual entry - Application area:
- Freshwater and seawater aquariums, aquaculture / fish farming, monitoring of wells and bodies of water
- Measuring range (O2 concentration):
- 0.0 to 20.0 mg / l (or ppm)
- Measuring range (O2 saturation):
- 0 to 200 %
- Response time (T95):
- 10 s at nominal temperature
- Sensors / measuring inputs:
- Galvanic sensor (active membrane type), electrolyte KOH Cable 2 m or 4 m, permanently connected to device, with integrated temperature sensor
